CAT III DVOM

TEST RANGES: DC Volts: 0-400mV, 4V, 40V, 400V, 600V

AC Volts: 0-4V, 40V, 400V, 600V
DC Amps: 0-40mA, 400mA, 20A
AC Amps: 0-40mA, 400mA, 20A
Ohms: 0-400, 4k, 400k, 400k, 4M, 40M
Capacitance: 0-4nF, 40nF, 400nF, 4uF, 400uF, 4mF, 40mF
Frequency: 0-2kHz, 40kHz, 400kHz, 40MHz
Duty Cycle: 0.1% – 99.9%
Pulse Width: 1.0 – 20.0 ms
Type K Temp: -22F to 1832F, -30C to 1000C
RPM: 0-4000 RPM, 0-12000 RPM x10
RPM (DIS): 0-4000 RPM, 0-6000 RPM x10
Dwell: 4Cyl, 5Cyl, 6Cyl, 8Cyl
Continuity: Continuity Beep – under 50 Ohms
Diode: Diode Test

We have been selling this meter for years. Great meter at a Great price.

FEATURES:
CATIII 1000 Volt
Safe For Use on Hybrids and EV’s
Auto-Ranging DMM Designed for Automotive Trouble Shooting
18 Test Functions, 48 Test Ranges
Peak Min/Max

Min/Max Mode records

Also measures Temperature via Temp Probe in Both F and C
Milliseconds Pulse Width Measures Fuel Injector ON-TIME
Inductive RPM Readings for both DIS and Conventional Ignitions
Desirable 20 Amp Test Range – Dual Fuse Protection
Data Hold, Auto Power-Off, + Trigger Adjust
Large LCD Display w/White LED Backlighting and 40 Segment Analog Bargraph

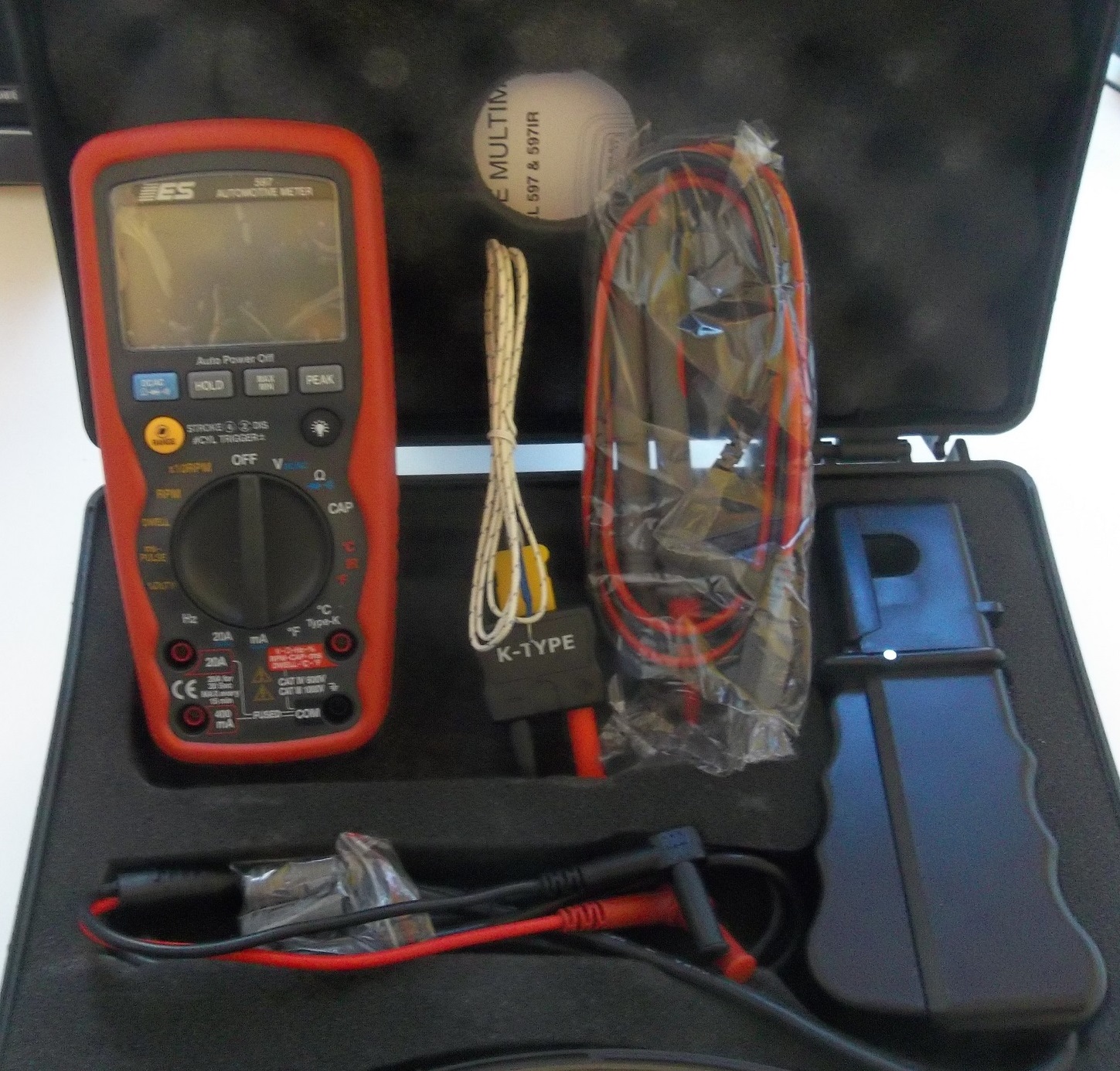

Blow Mold Case, Test Leads, K-Type Temp Probe, Inductive RPM Clamp and Instructions included
Waterproof to IP67 Standards

TEST FUNCTIONS:
AC/DC Voltage
Resistance
AC/DC Current
Temp via Contact Probe F & C
RPM & (DIS) RPM
Milliseconds Pulse Width
Dwell (direct)
Frequency (Hz)
Duty Cycle
Capacitance
Diode Test
Continuity
